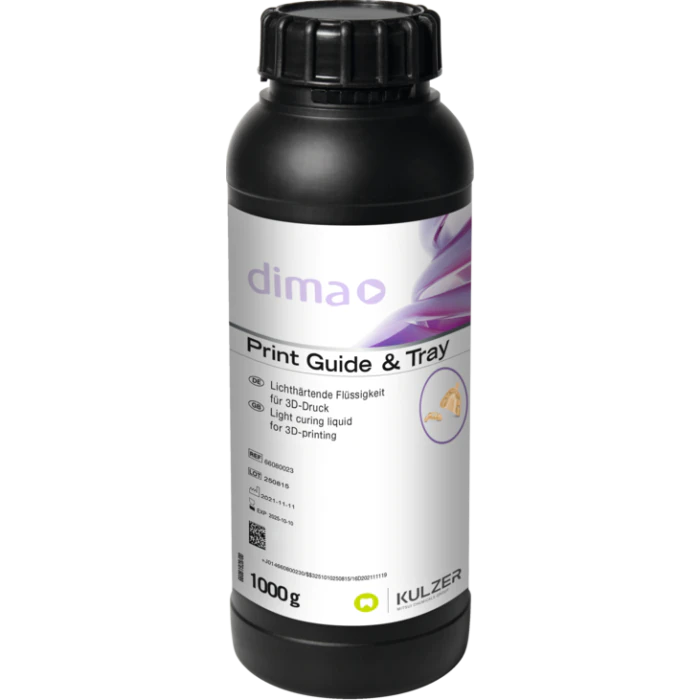

dima® Print Guide & Tray
Overview
Benefits
Good to know
Gallery
Specifications
Downloads
Did you know that it is much easier to print surgical guides & individual impression trays instead of producing them analog? The dual application of dima Print Guide & Tray saves you storage capacity and overall production time. With this new photopolymere we have brought in our longtime impression expertise, where the impression tray has been tested with various impression materials & tray adhesives. Rely on us and test it!
Surgical guides
- High accuracy! Very high heat resistance during autoclaving, meaning little to no distortion.
- Safe and convenient! Transparent guides enable visual control of surgical field – satisfied dentist.
- Verified! Colour change after autoclaving.
- Overall efficient and economical!
- 30 minutes for printing surgical drilling guides – 100 µm.
- Create approx. 130 drilling guides with just one bottle dima Print Guide & Tray.
Individual impression trays
- High precision! The transparent-orange color allows for visual control during tray fitting and impression taking.
- Expert for impression! Kulzer has confirmed it’s compatibility with impression materials and tray adhesives.
- Overall efficient and economical!
- 15 minutes for printing Trays – 150 µm
- Create approx. more than 40 impression trays with just one bottle dima Print Guide & Tray
Produce more quickly and easily surgical guides with dima Print Guide&Tray.
Appearance before post-curing
Appearance after post-curing and polishing (before sterilization)
Final surgical guide (after sterilization)
The transparent-orange colour allows for visual control during tray fitting and impression taking
Printing performance overview cara Print 4.0
Example |
Build height [mm] | Time [min] for 100 µm resolution | Time [min] for 150 µm resolution | Material consumption [g] | Avg. material costs/part [€] | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Medium size drilling guide | 20 | 15 | - | 7,5 | 2,17€ | |||||||||
Impression tray (upper jaw) | 67 | 42 | 32 | 37,6 | 10.87€ |
Product overview
Flexural Strength (Mpa) | Flexual Mdoulus (Mpa) | Water sorption (µm/mm³) | Water solubility (µm/mm³) | Cleaning time in isopropanol cara Print Clean pro | Post-curing time HiLite Power 3D | Post-Curing time LEDcure (no turning of object necessary) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
> 90 MPa (measured dry, adapted to ISO 20795-1:2013) | > 2500 MPa (measured dry, adapted to ISO 20795-1:2013) | / | / |
Pre-cleaning: 3 min. Post-cleaning: 2 min. |
10 min. (5 min. front side 5 min, reverse side) | Select dima Print Guide & Tray |
