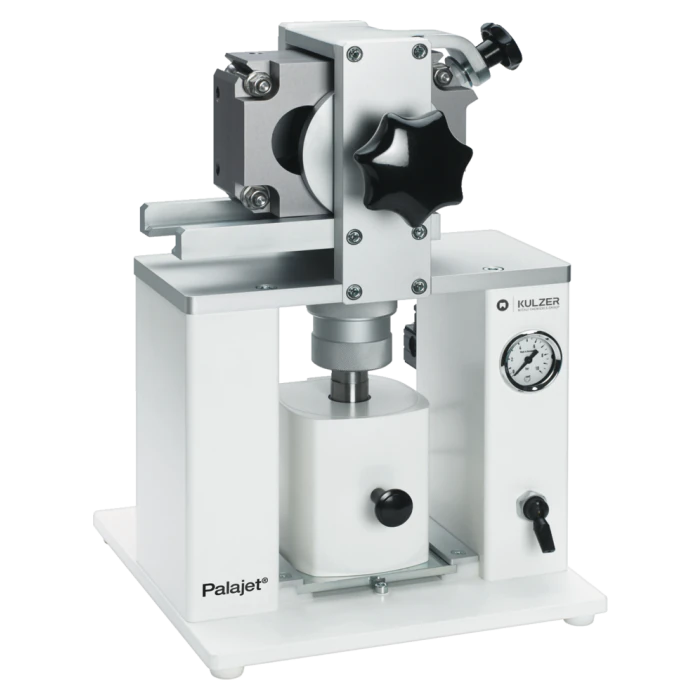

Palajet®
Overview
The injector unit for manufacturing full dentures is perfectly designed for the material properties of our PalaXpress prosthetic acrylics.
The well designed PalaXpress dosing system eliminates dosing errors and ensures consistent processing properties. The result is convincing – both in simplicity of manufacture and in quality: High quality full dentures with many benefits compared to conventional systems.
Benefits
- Simple manufacture of full dentures
- No vertical occlusion adjustment
- High accuracy of fit, perfect seating
- Virtually no trimming
- Simple operation
- Maintenance free operation
- Only compressed-air connection required (4 bar)
- No application of force required
Applications
Investing and boil out of the Duoflask
Specifications
| Technical specifications for Palajet | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Compressed air connection | 5 - 10 bar | |||||||||||||
| Rated pressure | 4 bar | |||||||||||||
| Plunger speed | 0 – 50 mm/s | |||||||||||||
| Compression force on the filling cylinder | Approx. 2kN = 200 kp (kilopound) | |||||||||||||
| Dimensions W x H x D in mm: | 290 x 400 x 265 | |||||||||||||
| Weight in kg | Approx. 13.5 | |||||||||||||
Scope of supply :
- Injection cylinder including cover
- Palajet Duoflask (including hexagonal socket wrench [13 mm], opening key for flasks, spacer, place-holder)
- 12 x injection cylinder cartridges
- 12 x cover cartridges
- 50 x sealing discs
- Measurement cup
- Mixing cup
- Channel wax (33 strips Ø 7mm and 30 strips Ø 3mm)
- Timer
- Flask basket
- Flask tray with pins
Accessories
Palajet Duoflask - double flask
Preparing and polymerising two dentures in one go - this is no longer a problem with the Palajet Duoflask in combination with the Palajet injection unit.
Benefits:
- Total preparation of complete full upper and lower dentures
- Save plaster
- Cuts the time required for completion in half
- Use placeholder if preparing only one denture
Art. code: 6471 5798
Scope of supply: Palajet Duoflask including socket wrench and spacer, placeholder
Palajet Single flask - single flask
The completed wax setup can also be invested in a single flask and injected using Palajet as usual
Benefits:
- Familiar processing
- Simple handling
- Shorter casting sprues
Art. code: 6471 0524
PalaXpress injection cylinder cartridges
For use in the Palajet injection unit
Delivery form:
- 20 cover and 20 sealing discs
Art. code: 6471 4213
PalaXpress dosing cup
For measuring the correct ratio of liquid and powder for use with the Palajet system.
Art. code: 6471 0521
